Luxpower 20kW 3 Phase inverter High Voltage Hybrid

Description

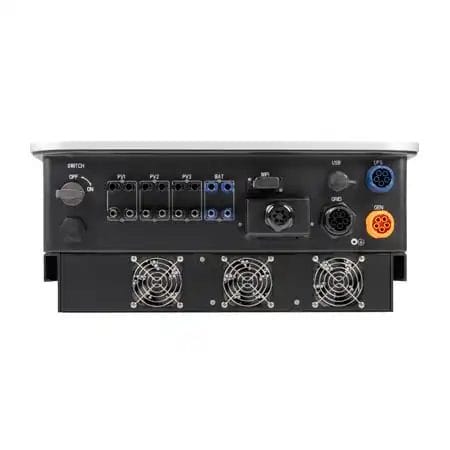

Luxpower 20kW 3 Phase inverter High Voltage Hybrid, the TriP 20K three-phase hybrid inverter gives your site stable power, flexible solar input, and battery backup. This high voltage hybrid inverter suits demanding homes, farms, and commercial sites. It handles large PV arrays, supports battery storage, and keeps key loads running during outages.

This 20kW three-phase inverter works with lithium-ion and lead-acid batteries across a 100~700V range. It supports up to 10 units in parallel for larger systems. Three MPPTs improve solar harvesting across different roof sections. The separate GEN port adds more control for generator support and smart load management.

Key Features

• TriP 20K supports up to 30000W PV input.
• Three MPPTs improve string design flexibility.
• Battery voltage range runs from 100V to 700V.
• UPS output reaches 20000W with 20ms switching time.
• Supports parallel expansion for bigger solar battery inverter systems.
• Separate GEN port supports smart load control.
• IP65 housing suits demanding indoor or covered outdoor installations.

Technical Specifications

• Rated AC output power: 20000W.
• Max. PV input voltage: 1000V.
• Rated PV input voltage: 690V.
• Max. charge and discharge current: 50A.
• Max. charge and discharge power: 20000W.
• Max. AC input current: 45.5A.
• Efficiency: 97.4% max, 97.2% charge and discharge.
• Dimensions: 605x563x257mm.
• Weight: 38kg.
• Warranty: 5 years.

Applications

• Ideal for a 20kW three-phase hybrid inverter for commercial solar systems.
• Works well in workshops, warehouses, and agricultural sites.
• Supports high voltage inverter with battery backup system designs.

FAQs

Can the TriP 20K run during load shedding?
Yes. The inverter supports UPS output and fast switching for backup power. It helps protect critical circuits during utility loss.

What batteries work with the TriP 20K?
The unit supports lithium-ion and lead-acid batteries. It works across a 100V to 700V battery range.

Is the TriP 20K suitable for larger systems?
Yes. You can parallel up to 10 units. This helps when you need more power capacity. It suits future expansion plans.

Order the TriP 20K Today

Order the TriP 20K today for strong hybrid performance, smart control, and reliable backup power. Contact us now for pricing and system advice.
