What fuse do I need between my battery and my inverter?

The correct fuse rating depends on your battery voltage and inverter size. On a 48V system with a 5kW inverter, the continuous DC current is approximately 104A at full load, so the 125A 500V DIN fuse provides adequate protection with a safety margin. On a 48V system with an 8kW or larger inverter, the 160A 500V DIN fuse is the correct choice. Always size the fuse for the cable's current rating, not the inverter's rated output alone.

What is the difference between a 1000VDC string fuse and a 500VDC battery fuse?

A 1000VDC string fuse protects the high-voltage DC wiring between solar panels and the inverter MPPT input. Solar panel strings can produce open-circuit voltages well above 400V, so the fuse must be rated for at least 1000VDC. A 500VDC battery fuse protects the battery-to-inverter cable, where a 48V LiFePO4 battery bank operates at 48V to 58V under load and charge — well within the 500VDC rating. Using a 500VDC fuse on the panel string side is incorrect and potentially dangerous.

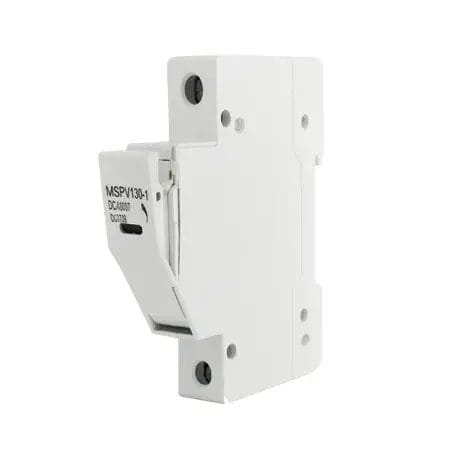

What size fuse fits the PV DC Fuse Holder 1000V 32A?

The PV DC Fuse Holder 1000V 32A 10X38mm accepts all 10x38mm cartridge fuses rated up to 32A at 1000VDC. This includes the SP-Energy Solar Fuse range in 15A, 20A, 25A, and 30A. Do not insert a fuse with a current rating above 32A into this holder, as the holder's contact clips and terminal connections are rated for a maximum of 32A continuous current.

Do I need a string fuse if my inverter already has internal input protection?

Yes, in most multi-string arrays. Inverter input protection does not protect individual strings from reverse current caused by parallel string faults. If one string is shaded or faulted, current from the other strings can flow backwards through the faulted string's panels, causing damage. Per-string fusing in a combiner box prevents this reverse current flow regardless of what protection the inverter itself provides.

What is the Battery Busbar Box 5 Hole used for?

The Battery Busbar Box 5 Hole provides five bolted connection points on a common copper busbar inside a compact enclosure. It is used to distribute a single battery positive or negative connection to multiple inverter inputs, charge controllers, or load circuits. This eliminates multiple cables bolted directly to the battery terminal, which can loosen over time and create high-resistance joints. Each connection point on the busbar shares the same potential, so the box functions as a low-impedance distribution hub for DC wiring.

Can solar fuses protect my system during Eskom outages?

Fuses protect cables and equipment from overcurrent faults — they do not affect whether your system operates during a grid outage. A solar battery system with correctly rated fuses on the DC string and battery cable runs will continue to operate safely during an outage, with the fuses providing passive protection against wiring faults, battery short circuits, and panel string reverse current throughout the outage period.

Fuse and Holder

Showing all 9 results

Battery Busbar Box 5 Hole
R600.00 incl VAT
Add to basket
Fuse switch disconnector 160A 3P
R650.00 incl VAT
Add to basket

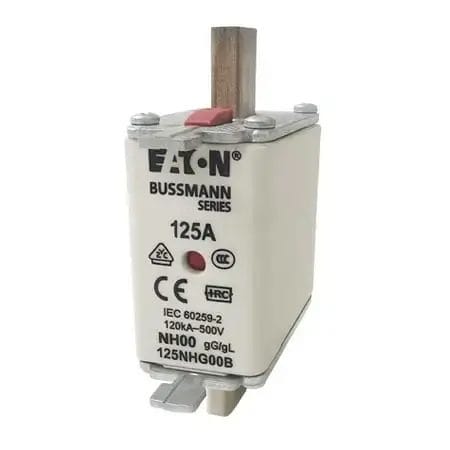

125A 500V Din Fuse 100NHG000B
R80.00 incl VAT
Add to basket

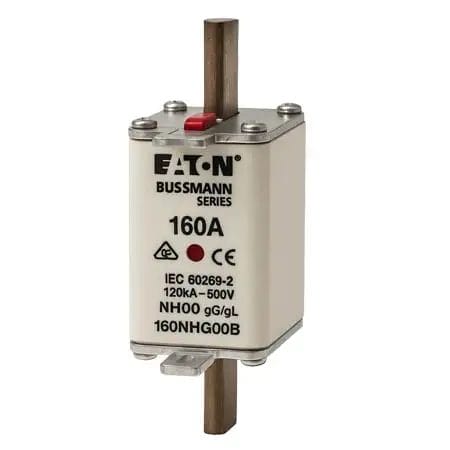

160A 500V Din Fuse 100NHG000B
R80.00 incl VAT
Add to basket
PV DC Fuse Holder 1000V 32A 10X38mm
R50.00 incl VAT
Add to basket
Solar Fuse 15A 1000VDC 10X38mm
R60.00 incl VAT
Add to basket
Solar Fuse 20A 1000VDC 10×38mm
R60.00 incl VAT
Add to basket
Solar Fuse 25A 1000VDC 10X38mm
R60.00 incl VAT
Add to basket

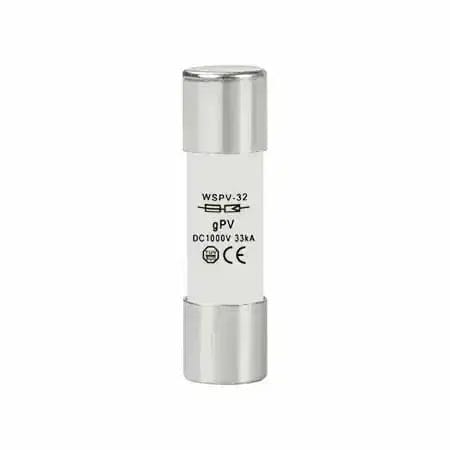

Solar Fuse 30A 1000VDC 10X38mm
R60.00 incl VAT
Add to basket

End of content

Shop our range of durable fuses and holders designed for solar electrical systems. Get the best protection and performance for your solar projects today!
