Why do I need DC surge protection on my solar system?

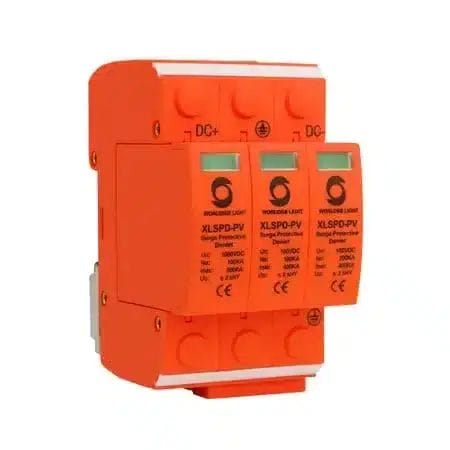

DC surge protection devices suppress voltage transients caused by nearby lightning strikes before they reach the inverter MPPT inputs. Without a DC surge protector, a single lightning event can destroy the inverter DC input stage, which is not covered under standard manufacturer warranty. The SP-Energy DC Surge Protection 500V 2P suits single-phase systems and the DC Surge Protection 1000V 3P suits three-phase and high-voltage installations.

What is a PV isolator and where is it installed?

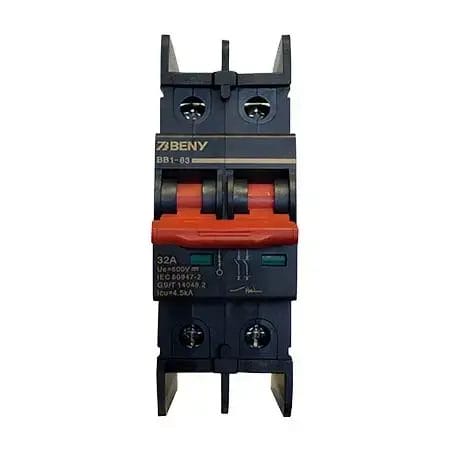

A PV isolator is a DC-rated load-break switch that disconnects the solar panel array from the inverter under live conditions. It is installed on the DC cable between the combiner box or panel output and the inverter DC input. The Beny PV Isolator 63A 2P 600V DC is rated for continuous DC current up to 63A at 600V and provides a safe disconnection point for maintenance, inverter replacement, or fault isolation.

What is the difference between an automatic and a manual changeover switch?

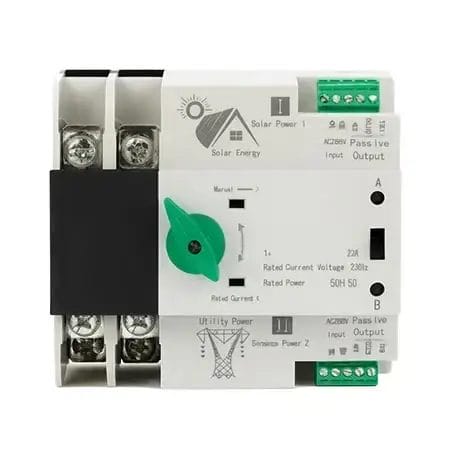

An automatic changeover switch monitors the incoming supply voltage and transfers the load to the alternative supply without manual input. The Automatic Changeover Switch 220V 63A suits installations where unattended switching is required. A manual changeover switch requires the user to physically move the switch lever to select the supply. The Manual Changeover Switch 2P 63A suits smaller systems where manual control is acceptable and cost is a priority.

Does the over and under voltage protector help with loadshedding damage?

Yes. When the grid is restored after an outage, a voltage spike sometimes follows as the supply stabilises. The Over Voltage and Under Voltage Protector AC disconnects the load immediately if the restored voltage exceeds the upper or falls below the lower threshold, protecting connected appliances from the spike. It reconnects automatically once the voltage returns to the safe range.

Do I need an earth spike for my solar installation?

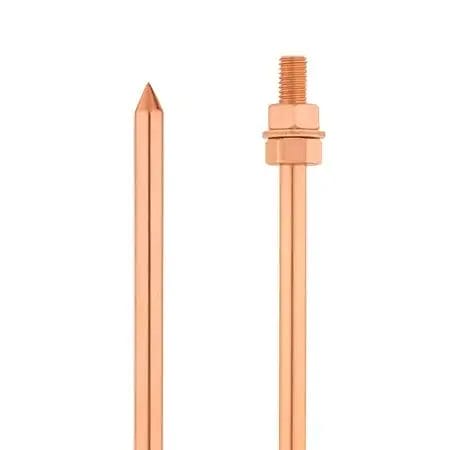

Yes. South African electrical installation rules require a proper earth electrode for any solar PV installation. The Earth Spike M12 x 12mm 1.2m is driven into the ground outside the building and connected to the inverter enclosure, mounting rail, and switchgear panel earth terminals. Correct earthing protects people and equipment from fault voltages and improves the effectiveness of the DC surge protection devices in the system.

Where can I buy solar switchgear and protection products in South Africa?

SP-Energy stocks all seven Switchgear and Protection products at 7 warehouses nationwide. Collection is available in Vanderbijlpark and Cape Town. Order online for delivery to all provinces in 2-5 working days. Browse the full solar combiner boxes and fuse and holder range to complete the full Solar Electrical protection setup for your system.
